Abstract

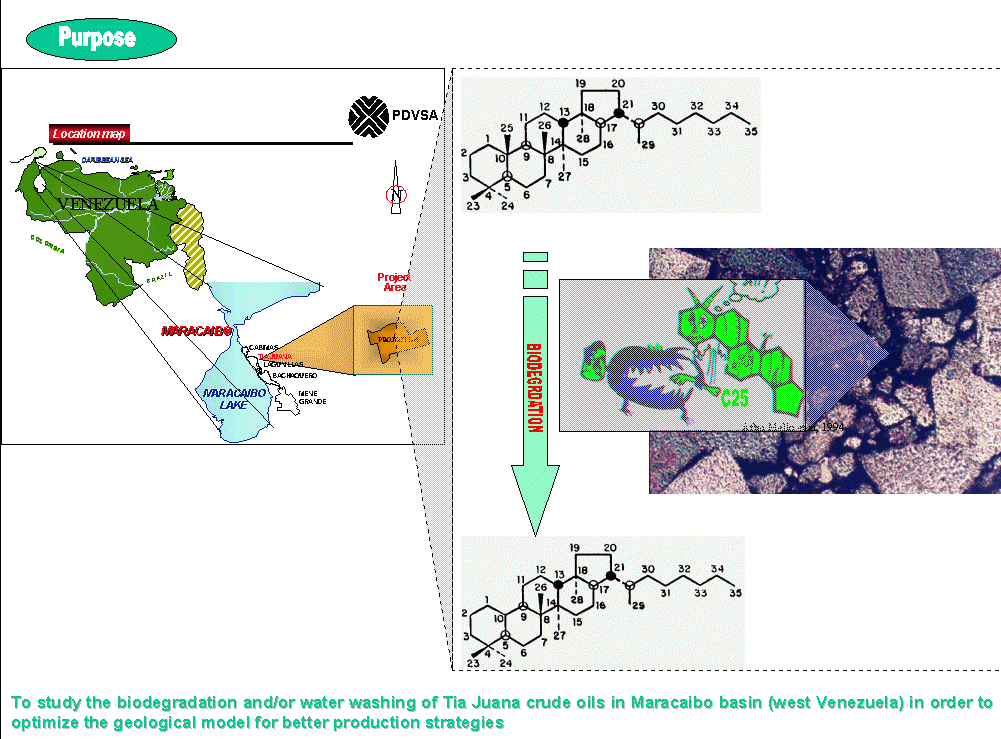

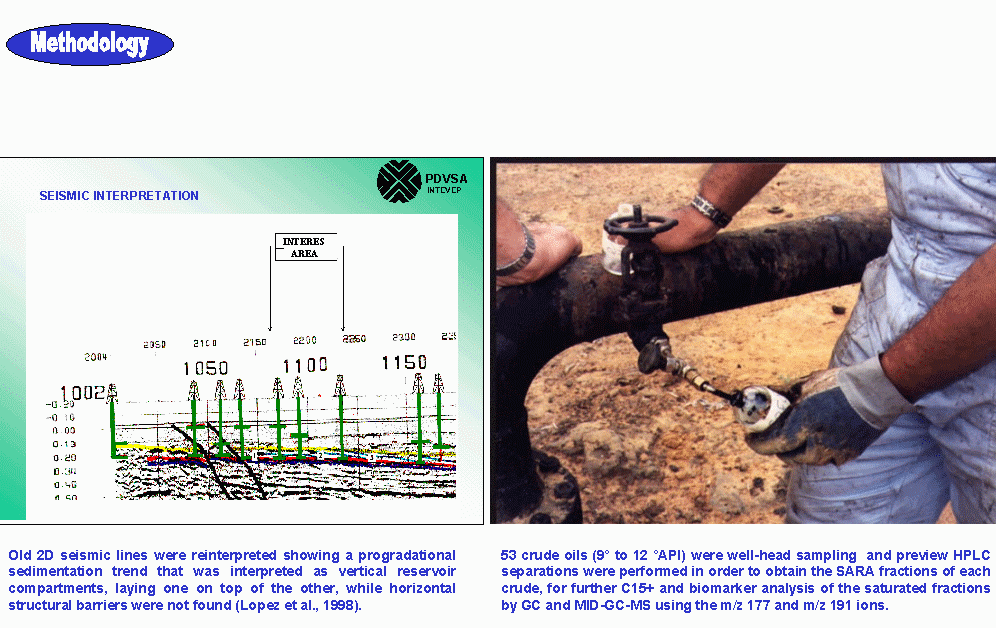

Integrated reservoir management includes a wide range of disciplines and technologies working in an effort to determine the optimal development strategy, both from the reservoir and economics point of view. This approach was applied to the D6 project of Tía Juana Field, Zulia State, West of Venezuela (Fig. 1). To apply this methodology, all geological and geochemical data available was collected and evaluated to select a pilot area inside the project. From these data, old 2D seismic lines were reinterpreted showing a progradational sedimentation trend that was interpreted as vertical reservoir compartments, laying one on top of the other (Fig. 2), while horizontal structural barriers were not found (Lopez et al., 1998).
As part of this integration, a geochemistry study was conducted in order to evaluate the horizontal continuity of the reservoir. This study has shown one of the most severe cases of aerobic biodegradation and water washing of heavy and extraheavy crude oils at shallow depths in Venezuela. The biodegradation of a crude in the reservoir reduces its quality due to a sequential removal of n-alkanes as conditions for microbial oxidation become increasingly favorable; others branched alkanes, isoprenoids, steranes, hopanes, diasteranes, aromatics steroids and porphyrins have also sequentially altereted. (Reed, 1977; Alexander et al., 1983; Volkman et al., 1983; Connan, 1984; Peters and Moldowan, 1992). Due to this differential resistance to biodegradation, comparisons of relative amounts of biomarker types can be used to rank oils as to the extent of biodegradation, when other technics like C15- and C15 + can not be used.
In this case ion 177 and 191 give a measure of the amount of alteration of biomarkers product of the biodegration process. In this work, preview HPLC separations of 53 crude samples (9° to 12 °API) were performed in order to obtain the SARA fractions of each crude, for further biomarker analysis of the saturated fractions by MID-GC-MS, using the m/z 177 and m/z 191 ions.

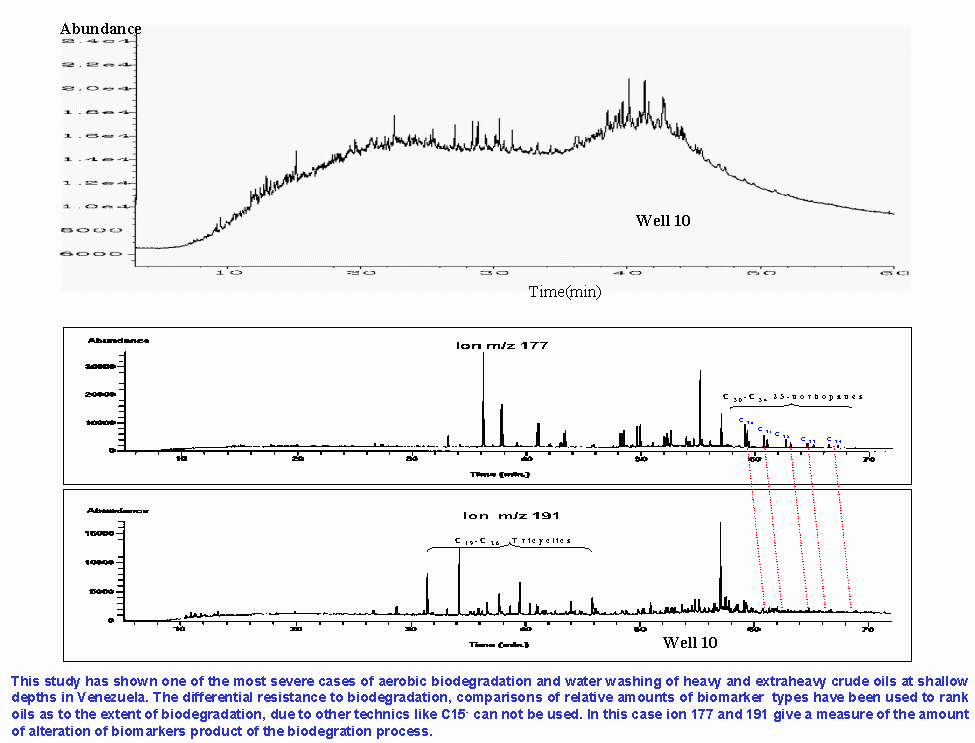

The results have shown that the studied crude oils had been exposed to heavy biodegradation, since the tricyclic terpanes have been also altered (Fig. 3), although these compounds are considered one of the most resistant to biodegradation.

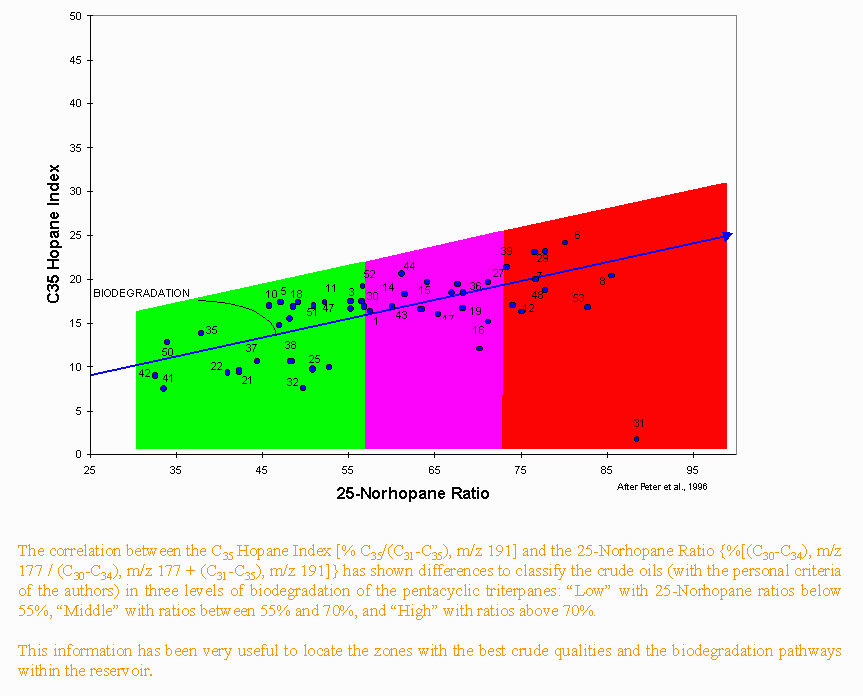

On the other hand, the results have shown a very similar bulk composition of the crudes (Table and Fig. 4) and also a similar distribution of the extended Nor-hopanes C30-C34 (Fig. 5), which may indicate that biodegradation process has been similar for the whole area, and there were strong possibilities of hydraulic horizontal communications in the reservoir. Nevertheless, preferentially low molecular-weight of the 17a,21b(H)-25-Norhopanes for conversion of extended hopanes has been used to rank the extent of crude biodegradation (Peters et al., 1996). The correlation between the C35 Hopane Index [% C35/(C31-C35), m/z 191] and the 25-Norhopane Ratio {%[(C30-C34), m/z 177 / (C30-C34), m/z 177 + (C31-C35), m/z 191]} has shown differences to classify the crude oils (with the personal criteria of the authors) in three levels of biodegradation of the pentacyclic triterpanes: "Low" with 25-Norhopane ratios below 55%, "Middle" with ratios between 55% and 70%, and "High" with ratios above 70% (Fig. 6). This information has been very useful to locate the zones with the best crude qualities and the biodegradation pathways within the reservoir.

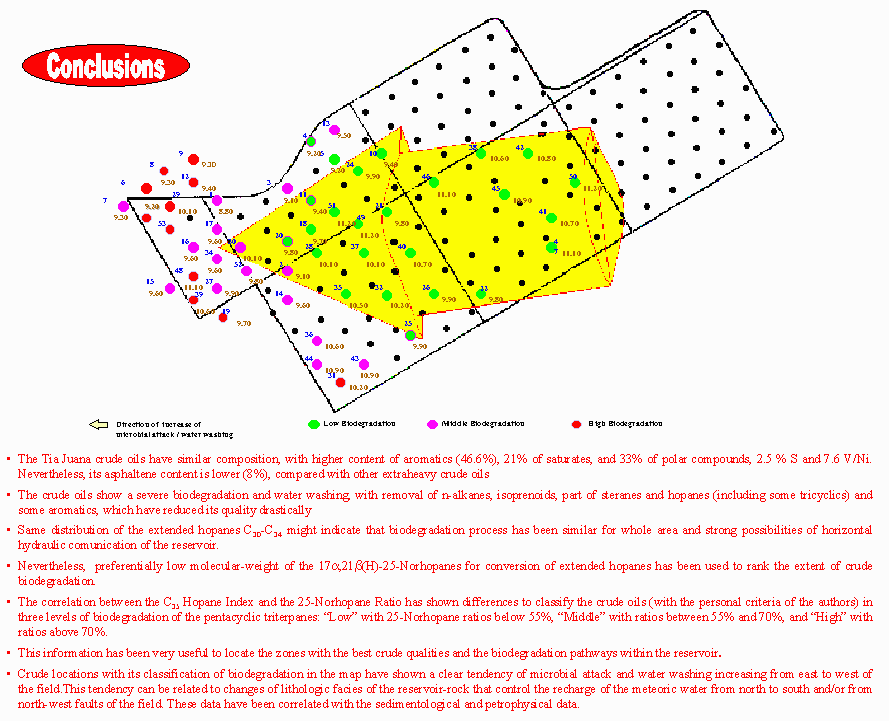

Crude locations with its classification of biodegradation in the map have shown a clear tendency of microbial attack and water washing increasing from east to west of the field (Fig. 7). This tendency can be related to changes of lithologic facies of the reservoir-rock that control the recharge of the meteoric water from north to south and/or from north-west faults of the field. These data have been correlated with the sedimentological and petrophysical data.
References:
Alexander R., Kagi, R.I., Volkman J.K. and Woodhouse G.W. (1983). The Geochemistry of some biodegraded Australian Oils. APEA J. 23, 53-63.
Connan J. (1984). Biodegradation of crude oils in reservoirs. In advances in Petroleum Geochemistry (Edited by Brooks J. and Westle D.H.), 299-335. Academic Press. London.
Lopez, E., Chedid, R., Romero, D. and, Pérez, C. (1998). Applications of seismic and field data to detect areas non reached by steam. Geo-Triad’98, Calgary-Canada.
Peters K.E. and Moldowan J.M. (1991). Effects of source, thermal maturity, and biodegradation on the distribution and isomerization of hopanes in petroleum. Org. Geochem. 17, 47-61.
Peters K.E., Moldowan J.M, McCaffrey M.A. and Fago F.J (1996). Selective biodegradation of extended hopanes to 25-norhopanes in petroleum reservoirs. Insights from molecular mechanics. Org. Geochem 24 (8/9), 765-783.
Reed, W.E. (1977). Molecular Composition of weathered petroleum and comparison with its possible source. Geochim. Cosmochim. Acta 41, 237-247.
Volkman J.K., Alexander R., Kagi R.I., and Woodhouse, G.W. (1983). Demethylated hopanes in crude oils and their applications in petroleum geochemistry. Geochim. Cosmochim. Acta 47, 785-794.
- Panel 1
- Panel 2
- Panel 3
- Panel 4
- Panel 5
- Panel 6
¹ PDVSA-Intevep. Los Teques, Edo. Miranda, Venezuela.
